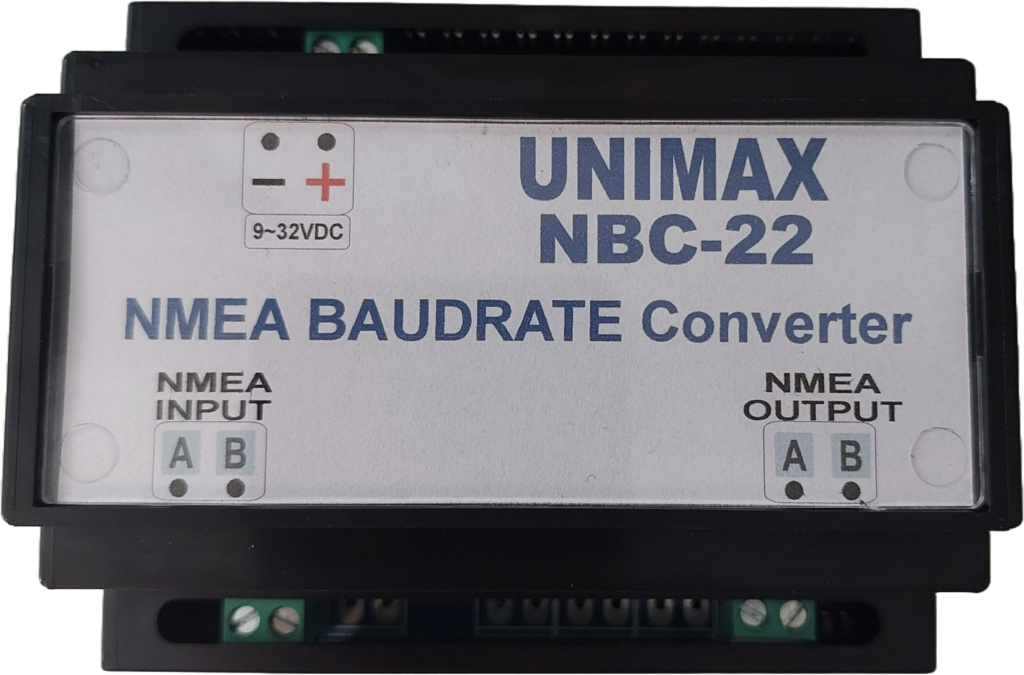

UNIMAX NBC-22 NMEA Baudrate Converter
NMEA baudrate converter is used to send and receive NMEA data with different baud rates. Input and output speed can be adjusted according to the desired speed. Configurable independently input and output speed 4800bps to 115200bps. The embedded software can be updated according to the specially specified baud rate.
In order for the DIP Switch settings to be effective, the device must be disconnected from the power and given again. Data loss may occur when converting from a higher value of baud rate to a lower due to the bottleneck effect.
| Technical Specifications | |
|---|---|
| Supply voltage | 9-32VDC |
| Power Supply Protection | Reversed polarity protection Internal resetable fuse |
| Input Data Protocol | NMEA0183, IEC61162 |
| Input | 1 X Galvanic isolated |
| Output | 1 X RS422 RS485 |
| Input Speed | Configurable with DIP Swithces 4800, 9600, 38400, 115200 bps |
| Output Speed | Configurable with DIP Swithces 4800, 9600, 38400, 115200 bps |
| Case – Dimensions | ABS DIN Rail Mount Box Width: 105 mm Depth: 86 mm Height: 58 mm |
