IWAS WIND SYSTEM
The Wind Alarm System gives an audible and visual alarm when the specified wind limit is exceeded. The wind alarm system is directly connected to the existing device or wind sensor on board. The device can be set to a 2-level alarm threshold. In addition, siren and warning lamp can be connected externally. Wind speed, direction and UTC time are recorded every second. It keeps the last two days of data in the internal SD card memory.
Wind speed unit can be set as m/s, km/h, knots. The Beaufort scale is calculated and displayed instantly.

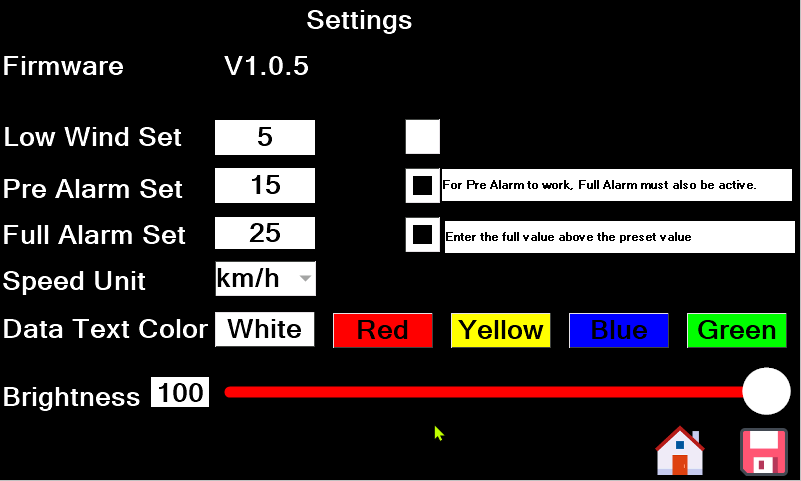

It provides easy view with its 7 inch large color touch panel display. It is suitable for flush and desktop mounting with its robust casing.
Wind alarm system can also be used in different areas which can be used for crane and heavy lift operations, for example at construction, industry.
| Technical Specifications | |
|---|---|
| Supply Voltage | 9-32VDC, 8 Watt |
| Wind Direction Range | 0-180 degrees (port & starboard) Full 360 degree display of apparent wind |
| Speed Unit | m/s, km/h, knots selectable |
| Beaufort Wind Scale Indicator | Automatic calculation |
| Input | 1 X Galvanic isolated NMEA Input 4800bps |
| Input data | Wind speed and direction NMEA data sentence MWV to any compatible NMEA device |
| Sensor | Ultrasonic, Mechanical, Existing Wind System |
| Display Type | Color LCD |
| Screen Size | 7″ |
| Brightness | 300nit – 0% to 100%, the interval of adjustment is 1% |
| Remote Brightness | Optional |
| Case-Dimensions | Metal – 250 x 180 x 55 mm |
